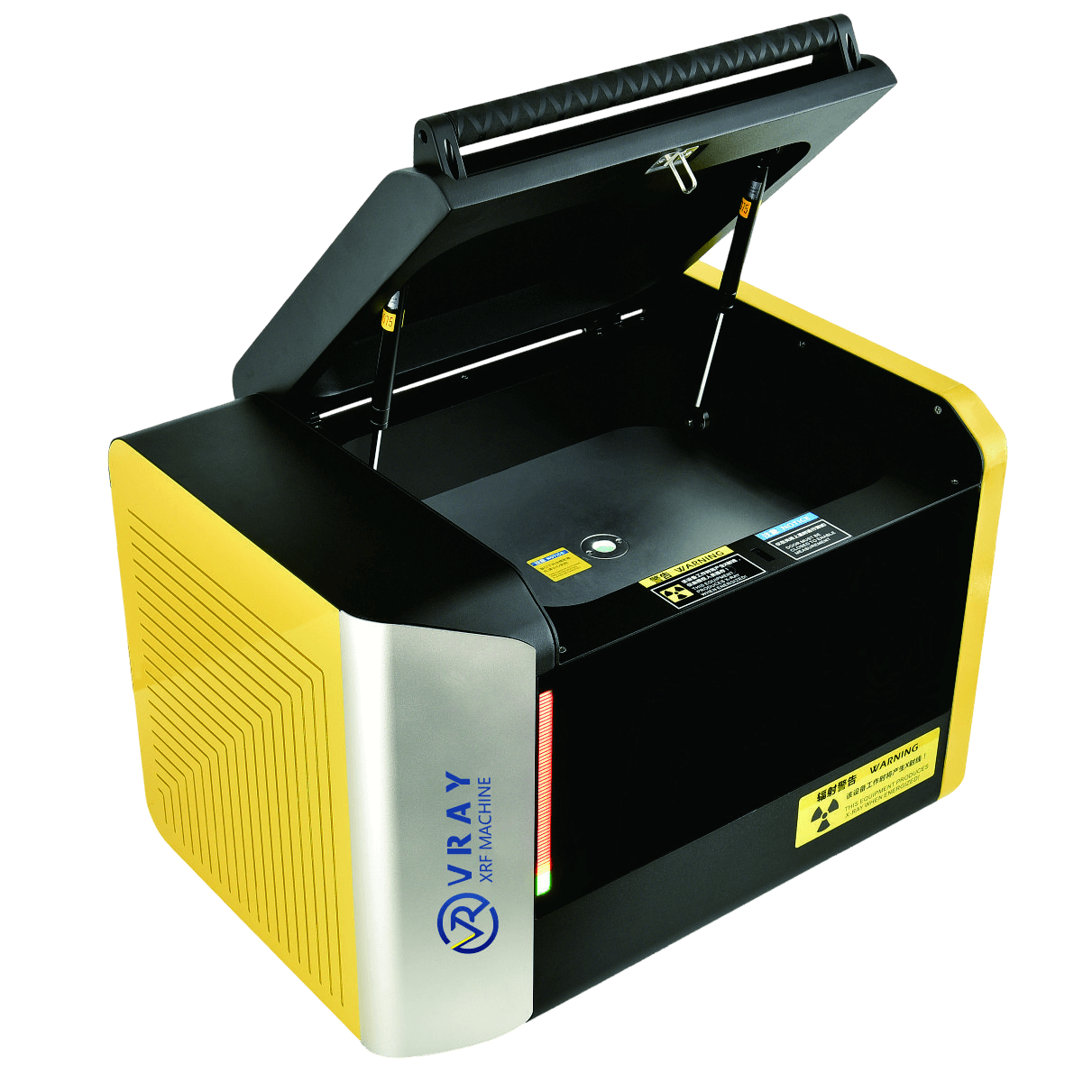

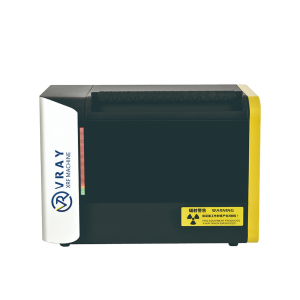

XRF 99999 Gold Analyzer VR-T9, Multi-Collimator Spectrometer

The VR-T9 benchtop analyzer delivers ultra-precise (±0.001% (99999gold)) gold testing up to 99.999% purity with a multi-collimator system and Fast-SDD detector. Ideal for jewelry, recycling, and labs, it ensures non-destructive, rapid analysis with professional-grade reliability.

SENT INQUIRY

LIVE CHAT

DOWNLOAD

Specifications

570 × 400 × 400 mm

Product Dimensions

47 kg (Net) / 60 kg (Gross)

Weight

368 × 304 × 78 mm

Sample chamber size

T-shaped radiator cooling system

Safety Protection

W, Au, Ag, Rh (optional)

Target Material

High-resolution CMOS color camera

Camera

50W (50 kV, 1mA) micro-focused beryllium window

X-ray Tube Power

100W

Rated Power

High sensitivity Fast-SDD detector

Detector Type

10°C ~ 35°C

Operating Temperature

<125 eV

Resolution

40% – 70% (Non-condensing)

Humidity

φ0.5mm/φ1mm/φ2mm/φ3mm(multi-size selectable)

Collimator

AC 220V±5V50Hz

Power supply

Air mode / Vacuum mode (optional)

Test Environment

Aluminum (Al₁₃) to Uranium (U₉₂)

Elemental range

±0.001%（99999gold）

Detection Accuracy

VR-T9 Benchtop Precious Metal XRF Analyzer

The VRAY VR-T9 is an elite benchtop X-ray fluorescence (XRF) analyzer engineered for ultra-high-precision precious metal analysis, capable of detecting gold purity up to 99.999% with an exceptional accuracy of ±0.001%. Designed for demanding applications in jewelry manufacturing, refining, recycling, and quality control laboratories, this spectrometer combines cutting-edge technology with user-centric features to deliver unmatched reliability and efficiency.

Equipped with a high-sensitivity Fast-SDD detector and a multi-collimator system (φ0.5mm/φ1mm/φ2mm/φ3mm), the VR-T9 adapts to diverse sample types and sizes, enabling precise analysis of solids, liquids, and powders without destructive preparation. The 50W micro-focused X-ray tube with a beryllium window ensures rapid excitation of elements from aluminum (Al) to uranium (U), while the advanced Fundamental Parameter (FP) algorithm integrates calibration curve and FP methods to enhance spectral accuracy and minimize detection limits.

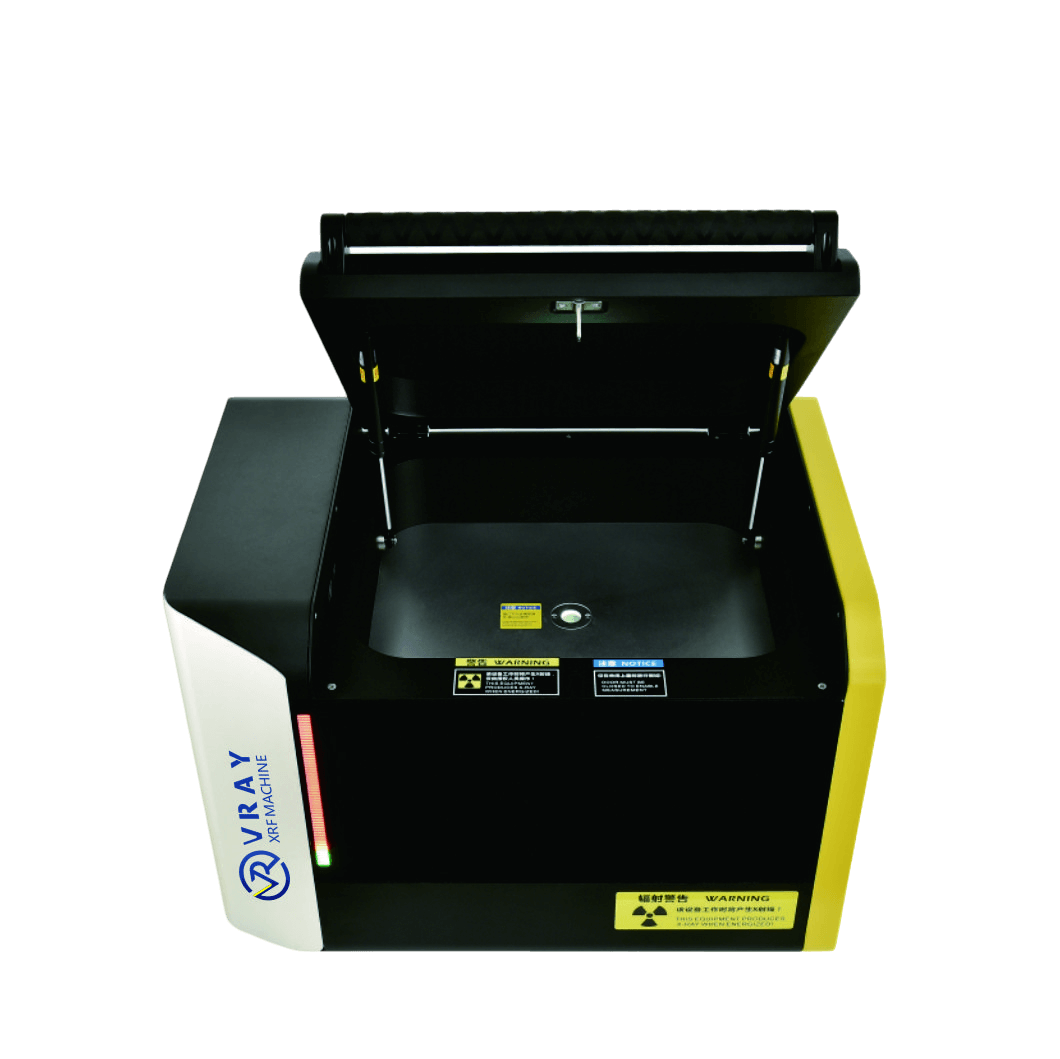

The instrument features a spacious sample chamber (368 × 304 × 78 mm) and an optional vacuum environment for analyzing light elements. A CMOS camera provides real-time sample visualization and documentation, and the built-in computer (Intel i5 processor, Windows 11 OS) supports seamless operation with multi-language software. Safety is prioritized through automatic radiation protection, a T-shaped cooling radiator, and compliance with international standards (GB 18871-2002).

Ideal for gold purity verification, alloy composition analysis, and ore grading, the VR-T9 offers one-click testing, customizable reporting (PDF/Excel), and connectivity via USB and other ports. Supported by VRAY’s global technical service network, it represents the pinnacle of precision and versatility in material analysis.

Rapid Testing

Get results within 30 seconds, greatly improving efficiency.

Versatile Applications

Suitable for a wide range of use cases.

High-Precision Analysis

Advanced algorithms and optical systems ensure accuracy and reliability.

Non-Destructive Testing

Non-contact analysis preserves samples intact.

Core Advantages:

Ultra-Precise Detection: ±0.001% accuracy for 99.999% gold purity verification
Multi-Collimator System: Four interchangeable collimators (φ0.5mm–φ3mm) for tailored analysis
High-Sensitivity Detection: Fast-SDD detector with <125eV resolution
Non-Destructive Testing: Supports solids, liquids, and powders without damage
Vacuum Compatibility: Optional vacuum environment for light element analysis
Pro-Level Safety: Automatic radiation cutoff, T-shaped cooling, and international compliance
