XRF Spectrometer VR-S6, High-Res Precious Metal Analyzer
The VR-S6 XRF Gold Analyzer is a high-resolution benchtop precious metal analyzer offering ±0.03%(9999gold) detection precision. Featuring an all-in-one design with built-in computer and large test chamber, it provides fast, non-destructive analysis of solids, liquids, and powders for jewelry, mining and quality control applications.
Specifications
360 × 510 × 350 mm
Product Dimensions
40% – 70% (Non-condensing)
Humidity
270 × 160 × 120 mm
Sample chamber size
Si-pin detector
Detector
Tungsten
Excitation source Target
AC 100~220V±5V, 50Hz
Power supply
X-ray Tube: 50W; System: 100W
power
High-performance
Inbuit computer
35 kg (Net)
Weight
11.6″ Touchscreen
Display
10°C to 35°C
Operating Temperature

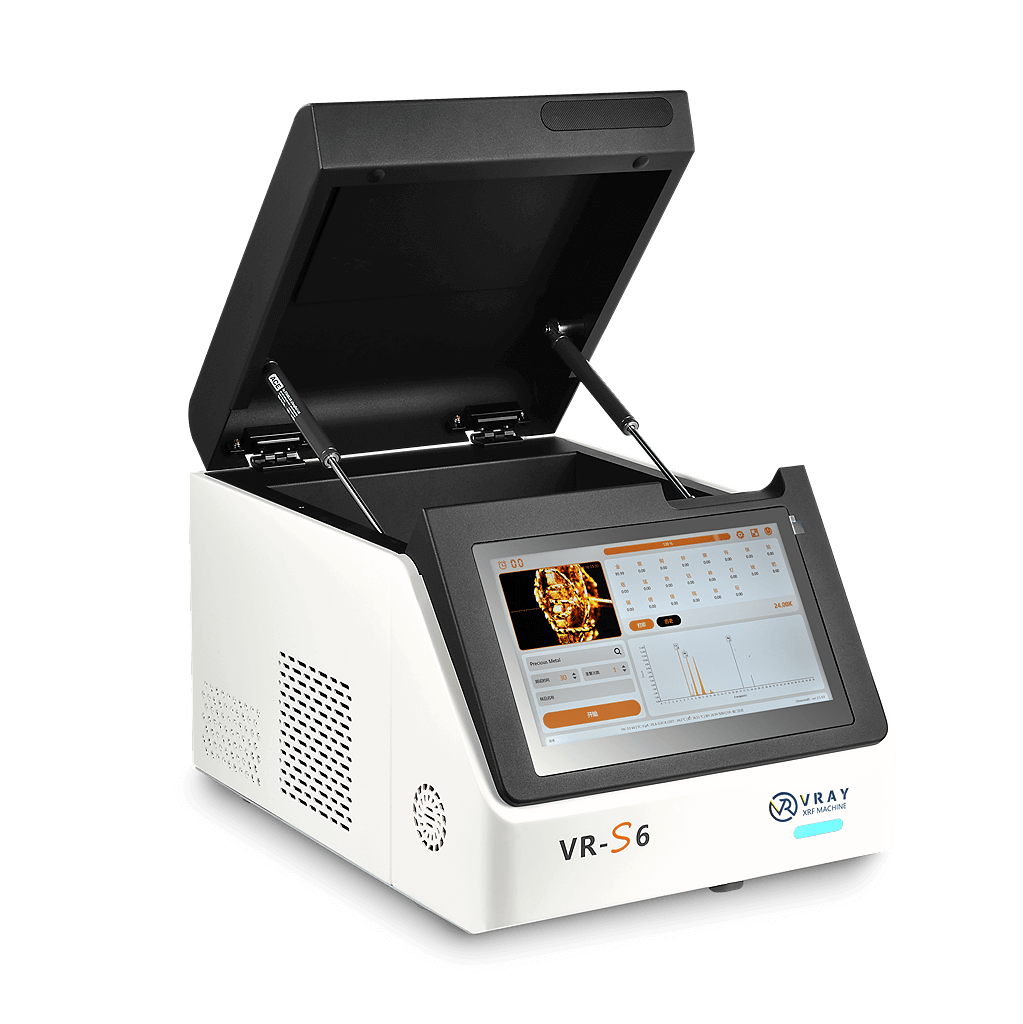

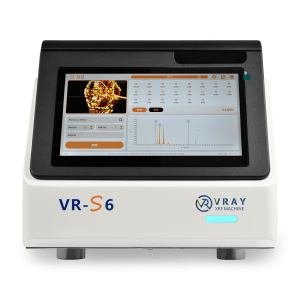

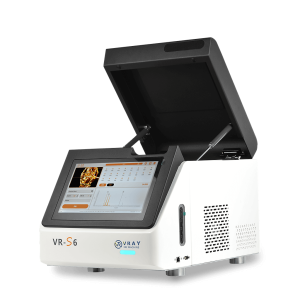

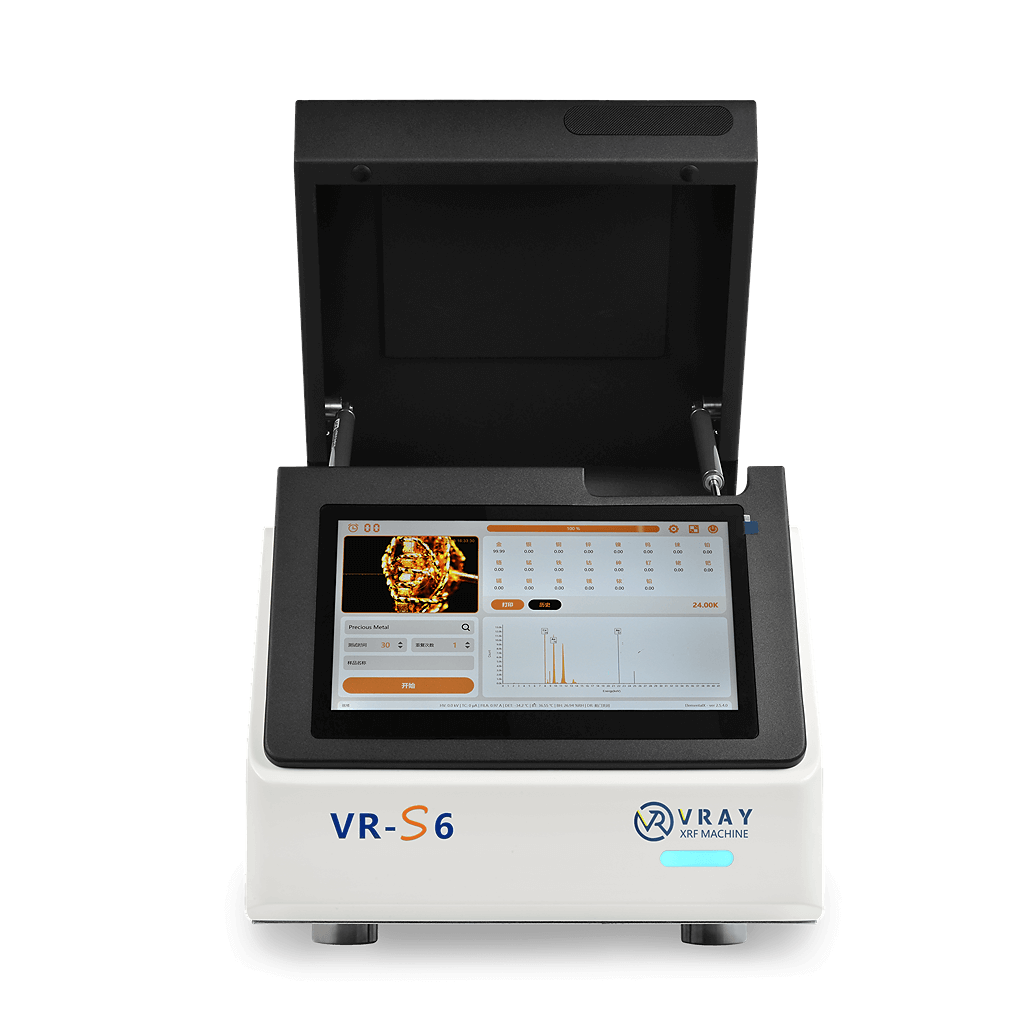

VR-S6 Benchtop XRF Spectrometer
The VRAY VR-S6 is a high-precision benchtop X-ray fluorescence (XRF) spectrometer designed specifically for accurate and reliable precious metal analysis. With an exceptional detection accuracy of ±0.03%(9999gold), it is an ideal solution for industries requiring stringent quality control, such as jewelry manufacturing, pawnshops, recycling facilities, and metallurgical laboratories.
Equipped with a built-in computer (i5 processor, Windows 10 OS) and an 11.6-inch touchscreen, the VR-S6 offers an all-in-one design that simplifies operation and saves space. Its large testing chamber (270 × 160 × 120 mm) accommodates a variety of sample types, including solids, liquids, and powders, enabling non-destructive analysis without complex preparation.
The spectrometer features a high-performance micro-focused tungsten X-ray tube (50W) and a silicon-pin (Si-Pin) detector, ensuring rapid and precise elemental analysis from potassium (K) to uranium (U). Advanced FP (Fundamental Parameter) algorithms enhance spectral resolution and reduce detection limits, while automatic safety mechanisms—including radiation protection, interlock systems, and a T-shaped cooling radiator—ensure operator safety and instrument durability.
With connectivity options such as USB, Type-C, LAN, and HDMI, the VR-S6 supports seamless data export and reporting. It is widely used for gold fineness testing, alloy verification, ore grading, and educational purposes, delivering laboratory-grade results in a user-friendly and efficient format.
Backed by VRAY’s global technical support and online after-sales service, the VR-S6 combines innovation, accuracy, and reliability for professionals worldwide.
Rapid Testing
Get results within 30 seconds, greatly improving efficiency.
Versatile Applications
Suitable for a wide range of use cases.
High-Precision Analysis
Advanced algorithms and optical systems ensure accuracy and reliability.
Non-Destructive Testing
Non-contact analysis preserves samples intact.
Core Advantages & Key Features of VR-S6
The VR-S6 delivers laboratory-level precision and user-friendly operation in a robust benchtop design, making it ideal for high-accuracy precious metal and material analysis.
Core Advantages:
- Ultra-High Precision: ±0.03%(9999gold) detection accuracy for reliable gold fineness and alloy analysis
- All-in-One Design: Built-in computer and touchscreen for space-saving and easy operation
- Non-Destructive Testing: Suitable for solids, liquids, and powders without sample damage
- Large Test Chamber: Accommodates diverse sample sizes and shapes
- Advanced Safety Systems: Automatic radiation cutoff, interlock mechanism, and efficient cooling
- Professional Performance: Windows 10 OS with i5 processor and stable FP algorithm
- Global Support: Online after-sales service and technical assistance
Key Features:
- Elemental analysis range: K (19) to U (92)
- 50W micro-focused tungsten X-ray tube
- High-resolution Si-Pin detector
- 11.6″ touchscreen with intuitive interface
- Multiple connectivity: USB, Type-C, LAN, HDMI
- Smart FP algorithm for enhanced spectral resolution
- Safety compliance with radiation protection standards
- Applications: jewelry, mining, recycling, education, quality control
- Data export and report generation support
Application Scenarios of the XRF Spectrometer
Jewelry shop
Quickly verify gold, silver, and platinum for reliable transactions.
Refineries
Ensure metal composition and purity for efficient refining processes.
Laboratories
Conduct accurate XRF analysis without damaging valuable samples.
Pawn shops
Detect metals and coatings quickly to secure trades and build trust.
Educational Institutions – Teaching and Research with XRF Technology
Train students and researchers in precise, non-destructive analysis.
Industrial Applications
Monitor metal quality and plating layers to meet industry standards.Technical Service & Warranty Items
Online Technical Support
Remote Diagnosis Service
1-Year Standard Warranty
Extended Warranty Options
Calibration Service
Software Lifetime Upgrade
Spare Parts Supply
On-Site Training Service
Maintenance Service Package
Fast Response Service
