VRAY XRF Gold Analyzer VR-X5 with High Precision for Precious Metal Analysis
XRF analyzer delivers ±0.05% (9999gold) precision for gold and 20+ precious metals with customized Si-PIN detector and 3-second results. Featuring 12″ IPS touchscreen and built-in computer, it provides lab-grade analysis for jewelry, recycling, and industrial applications.
Specifications
520 × 460 × 400 mm
Product Dimensions
High-performance industrial computers
Built-in Computer
590 × 555 × 530 mm
Package Size
11.6“ IPS capacitive touchscreen
Display
270 × 260 × 100 mm
Sample chamber size
Au, Ag, Pt, Pd + 20+ elements
Elemental Range
38 kg (Net) / 47 kg (Gross)
Weight
±0.05%(9999gold)
Accuracy
AC 100~220V±5V, 50Hz
Input Voltage
0.01% ~ 99.99%
Analysis Range
<150W
Rated Power
5°C to 30°C
Operating Temperature
50kV/1mA, tungsten target Glass window, φ0.5mm focus
X-ray Tube
15% – 85% (Non-condensing)
Humidity
Customized Si-PIN
Detector
≤50dB
Noise Level
φ2.5mm
Collimator
USB, Bluetooth
Data Transmission
50kV/1mA digital high voltage
HV Power Supply

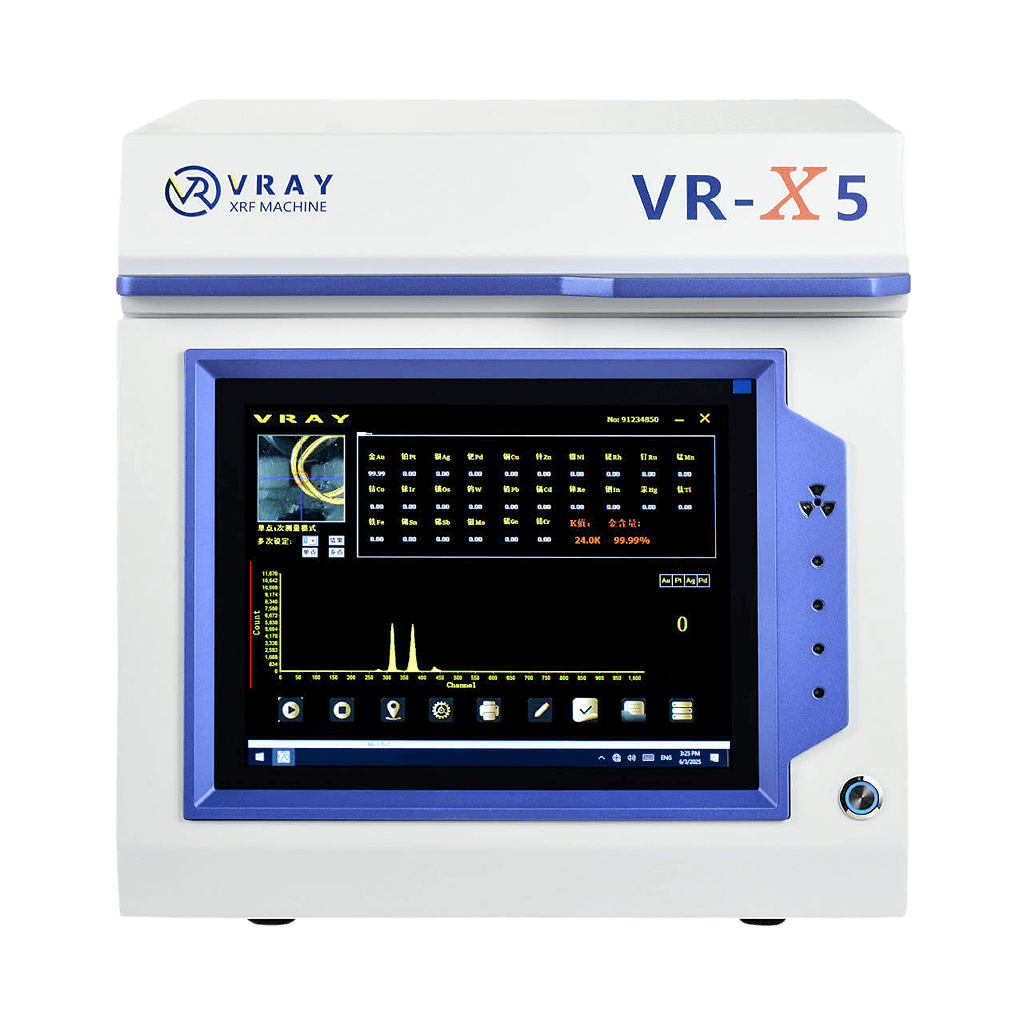

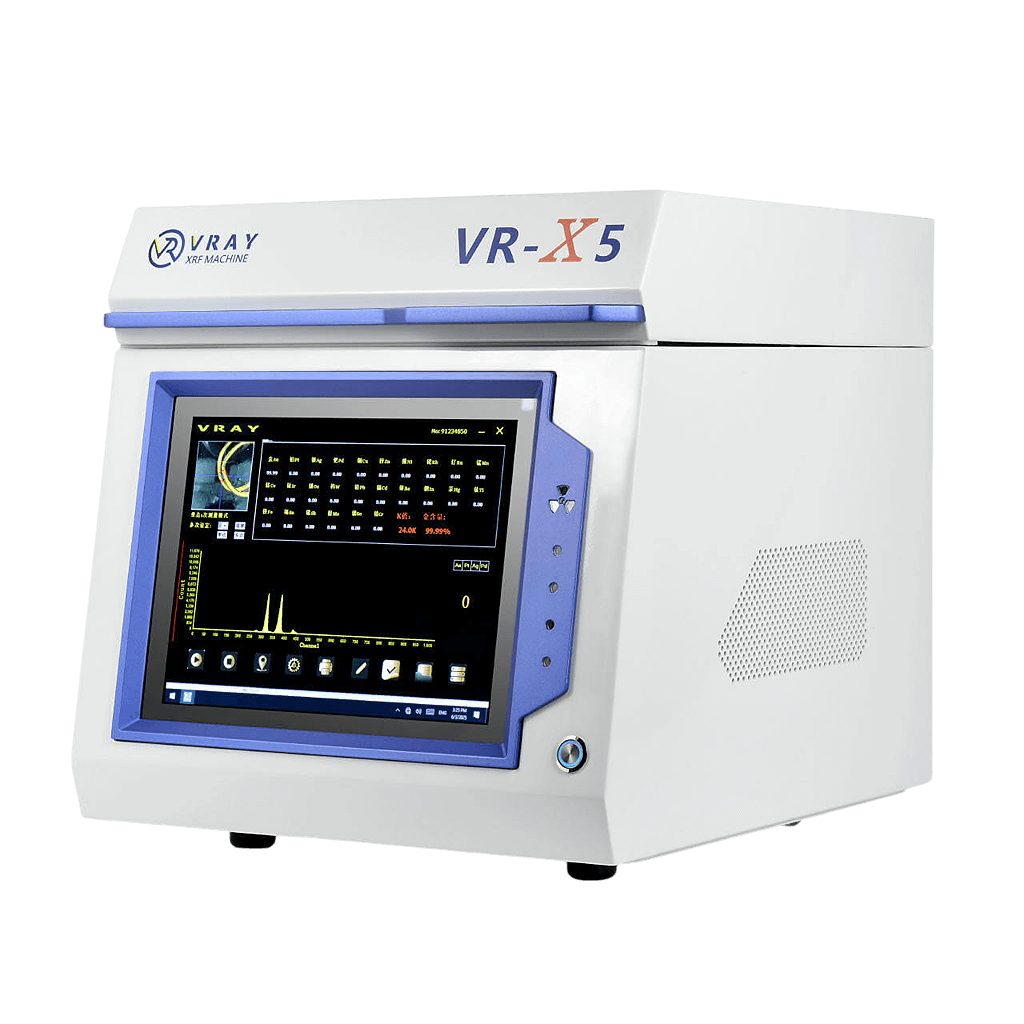

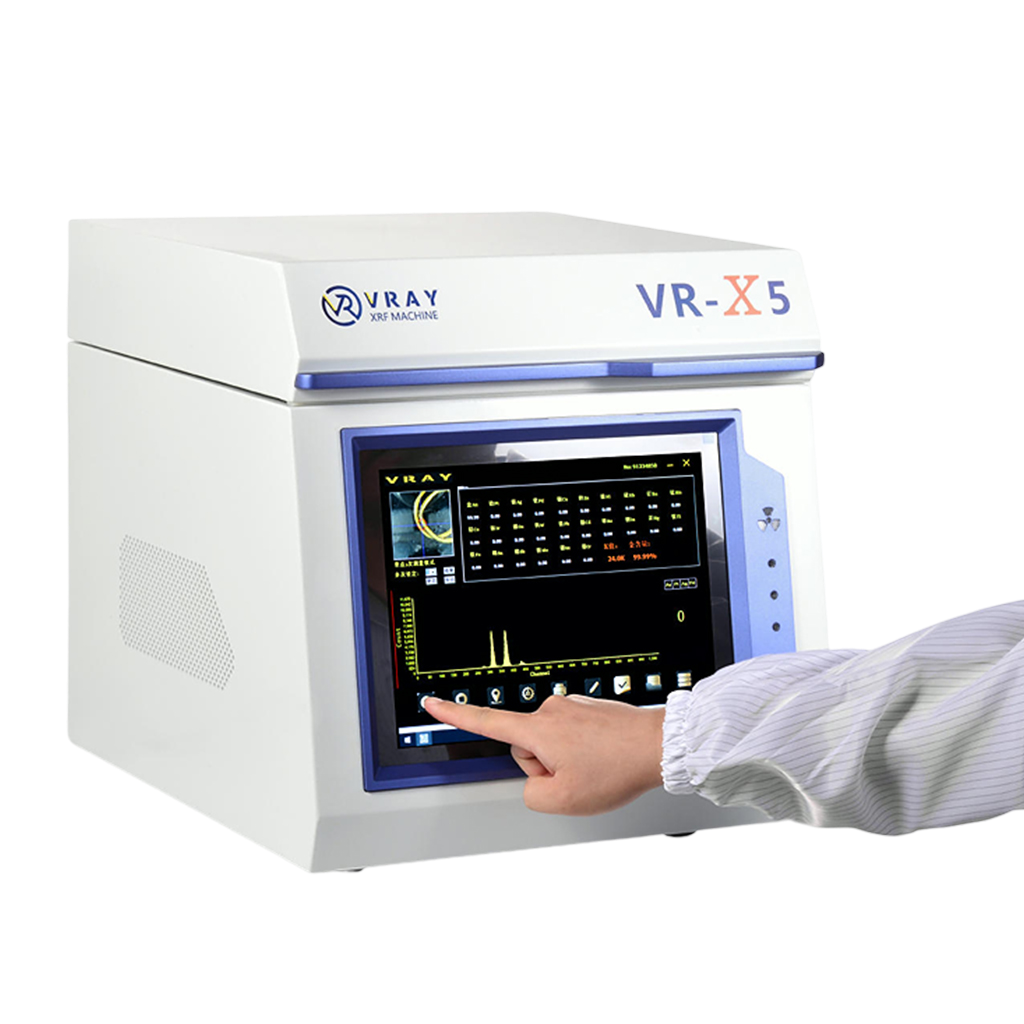

VR-X5 Benchtop Precious Metal Analyzer
The VRAY VR-X5 is a advanced portable X-ray fluorescence (XRF) analyzer designed for high-precision precious metal analysis across diverse industrial applications. Combining laboratory-grade accuracy with rugged portability, it delivers non-destructive testing of gold, silver, platinum, palladium, and over 20 other elements with an exceptional accuracy of ±0.05%. Ideal for jewelry stores, pawnshops, recycling facilities, and quality control laboratories, the VR-X5 offers rapid, reliable results in just 3 seconds, empowering users with real-time decision-making capabilities.

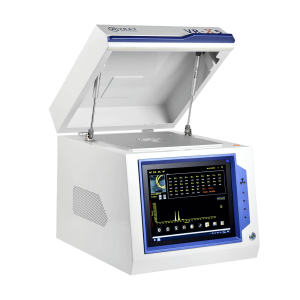

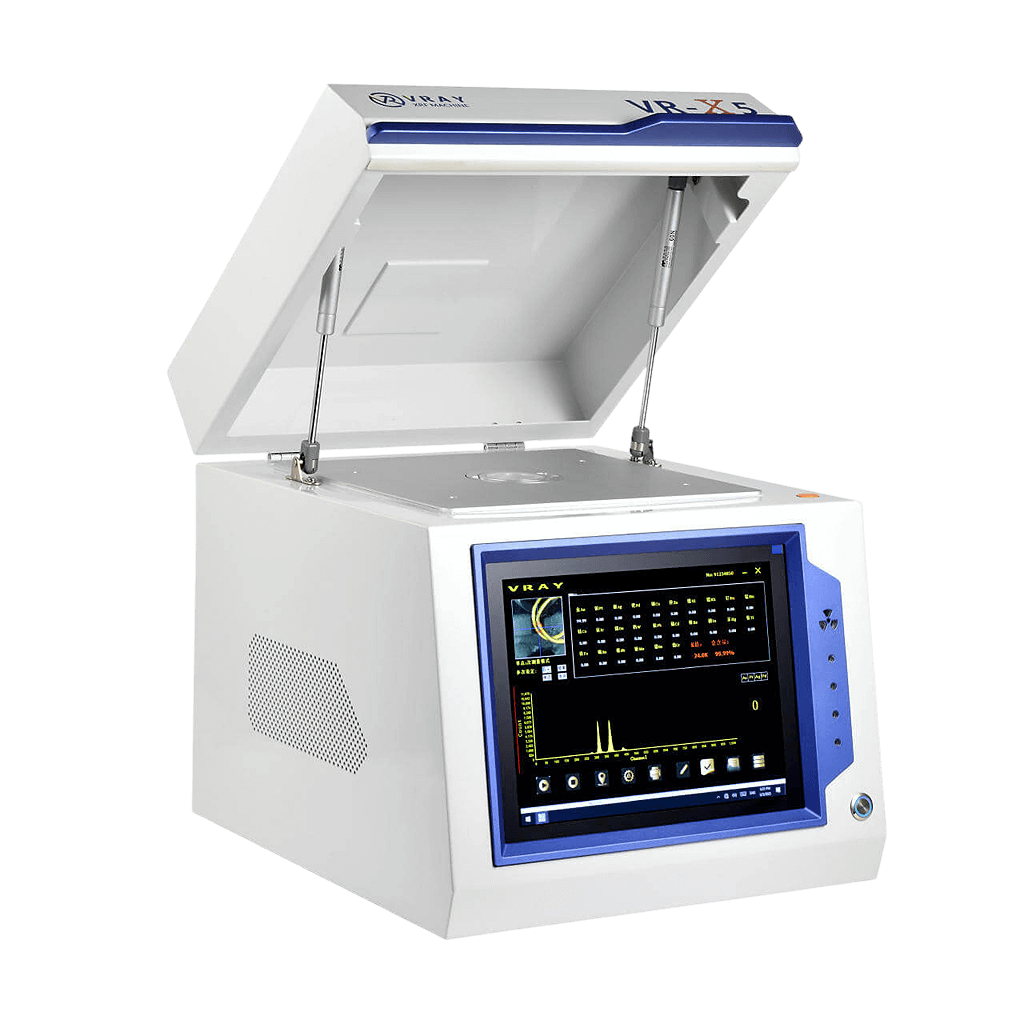

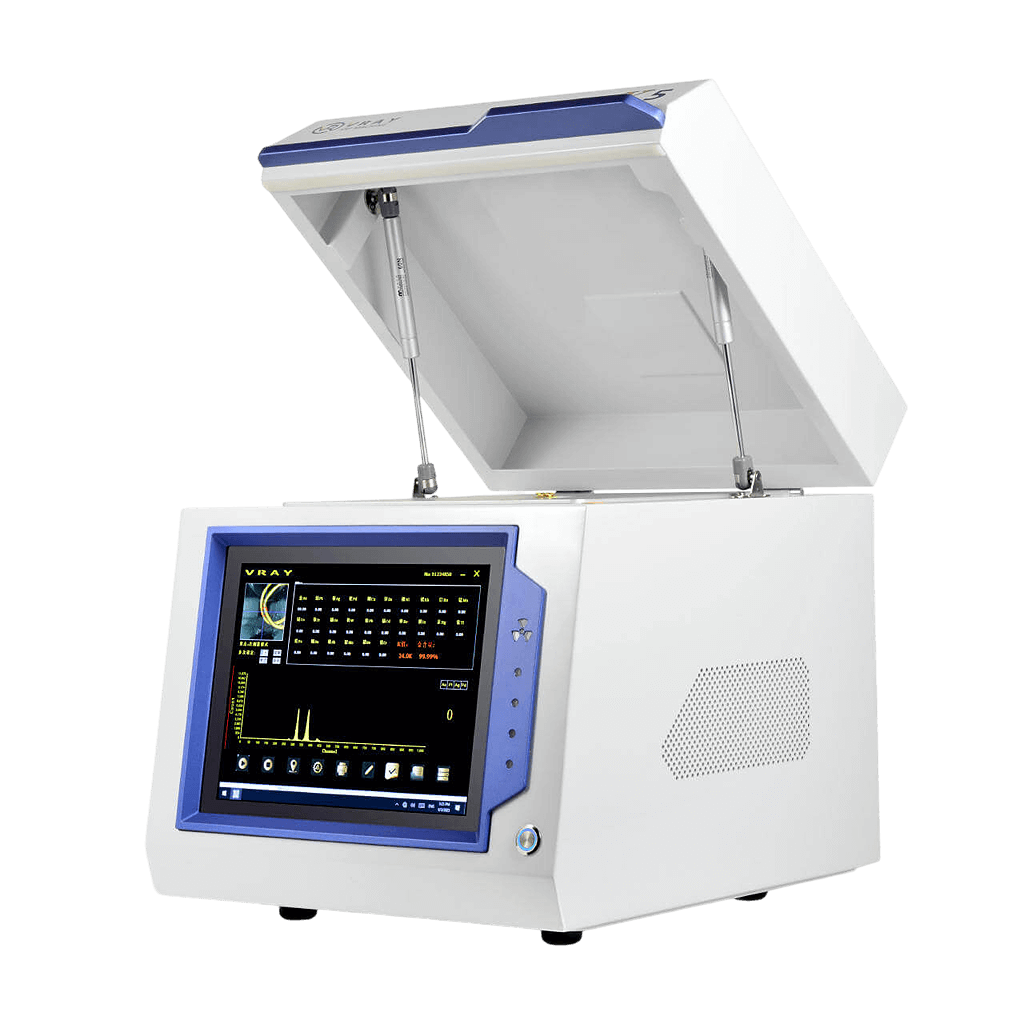

Equipped with a customized Si-PIN detector and a 50kV/1mA X-ray tube with a tungsten target and glass window, the analyzer ensures optimal excitation and detection of elements even in complex matrices. Its 12-inch IPS capacitive touchscreen and built-in Intel i5 computer provide an intuitive user interface, enabling seamless operation without external devices. The compact yet robust design (38kg net weight) features a spacious sample chamber (270 × 260 × 100 mm) accommodating solids, liquids, and powders.
Safety and durability are prioritized through X-ray tube overheating protection, high-voltage safety mechanisms, and anti-interference procedures. With USB connectivity and digital high-voltage supply, the VR-X5 supports data export and integration into existing workflows.
Rapid Testing
Get results within 30 seconds, greatly improving efficiency.
Versatile Applications
Suitable for a wide range of use cases.
High-Precision Analysis
Advanced algorithms and optical systems ensure accuracy and reliability.
Non-Destructive Testing
Non-contact analysis preserves samples intact.
Core Advantages & Key Features of VR-X5
The VR-X5 combines laboratory-level precision with rugged portability, delivering rapid, non-destructive precious metal analysis for on-site and lab applications with exceptional ease of use and reliability.
Core Advantages:
- High Precision Analysis: accuracy for gold can reach ±0.05%
- Rapid Results: 3-second will show the reference testing with one-button operation
- All-Sample Compatibility: Solids, liquids, and powders without damage
- Integrated Design: Built-in computer and 12″ IPS touchscreen
- Advanced Safety: X-ray overheating and high-voltage protection
- Cost-Effective: Lab performance at a portable analyzer price
Key Features:
- Customized Si-PIN detector with φ2.5mm collimator
- 50kV/1mA X-ray tube (tungsten target, glass window)
- Element range: Au, Ag, Pt, Pd, Rh, Cu, Ni, Zn +20 more
- 11.6-inch IPS capacitive touchscreen with intuitive interface
- Intel i5 built-in computer for standalone operation
- USB connectivity for data export and reporting
- Operating conditions: 5°C–30°C, 15%–85% humidity
- Applications: jewelry, recycling, quality control
- Complies with international safety standards
Application Scenarios of the XRF Spectrometer
Jewelry shop
Quickly verify gold, silver, and platinum for reliable transactions.
Refineries
Ensure metal composition and purity for efficient refining processes.
Laboratories
Conduct accurate XRF analysis without damaging valuable samples.
Pawn shops
Detect metals and coatings quickly to secure trades and build trust.
Educational Institutions – Teaching and Research with XRF Technology
Train students and researchers in precise, non-destructive analysis.
Industrial Applications
Monitor metal quality and plating layers to meet industry standards.Technical Service & Warranty Items
Online Technical Support
Remote Diagnosis Service
1-Year Standard Warranty
Extended Warranty Options
Calibration Service
Software Lifetime Upgrade
Spare Parts Supply
On-Site Training Service
Maintenance Service Package
Fast Response Service
