Handheld XRF Precious Metal Analyzer VR-H5, 1.6KG
Weighing only 1.6kg, the VR-H5 handheld analyzer delivers rapid, non-destructive precious metal analysis with lab-grade accuracy. Featuring a 4.3″ industrial touchscreen and 8-hour battery life, it’s ideal for on-site testing in jewelry, mining, and recycling.
Specifications
254 × 79 × 280 mm
Product Dimensions
32GB
Memory
500 × 400 × 200 mm
Package Size
Intelligent battery with MSBUS bus
Battery
1.6 kg (with battery) / 7.1 kg (gross)
Weight
USB, Bluetooth
Data Transmission
Up to 50kV/200µA, adjustable; Target: Ag (std), Au/W/Rh (opt)
Elemental Range
-20°C to 50°C
Operating Temperature
BOOST Si-PIN detector
Detector
40% – 70% (Non-condensing)
Humidity
4.3″ industrial resistive touch screen
Display
T-shaped radiator system
Heat Dissipation
Gravity sensing auto-shutdown, Double beam sample detection
Safety Protection
VR-H5 Handheld XRF Analyzer
VR-H5 is a lightweight (1.6kg), high-performance handheld X-ray fluorescence (XRF) analyzer designed for rapid, non-destructive elemental analysis of precious metals, alloys, and other materials in field and laboratory settings. Combining portability with laboratory-grade accuracy, it enables real-time detection of elements from potassium (K) to uranium (U), making it an essential tool for jewelry authentication, mining exploration, scrap metal recycling, and quality control.
Equipped with a BOOST Si-PIN detector which delivers reliable results within seconds. Its 4.3-inch industrial resistive touchscreen ensures clear visibility even in bright outdoor environments, while the MSBUS intelligent battery supports up to 8 hours of continuous operation. The device features advanced safety mechanisms, including gravity sensing auto-shutdown, DoubleBeam™ sample detection technology, and a T-shaped radiator for efficient heat dissipation.
With 32GB internal memory, Bluetooth/USB connectivity, and support for Excel/PDF report generation, the VR-H5 simplifies data management and sharing. Its rugged design complies with air transport safety regulations and operates reliably in harsh conditions (-20°C to 50°C). Ideal for on-the-go professionals, the VR-H5 offers unmatched versatility, accuracy, and ease of use for diverse applications.
Rapid Testing
Get results within 30 seconds, greatly improving efficiency.
Versatile Applications
Suitable for a wide range of use cases.
High-Precision Analysis
Advanced algorithms and optical systems ensure accuracy and reliability.
Non-Destructive Testing
Non-contact analysis preserves samples intact.
Core Advantages & Key Features of VR-H5
The VR-H5 handheld analyzer redefines portable elemental analysis by combining laboratory-grade precision with rugged field adaptability, delivering instant results for diverse industrial applications.
Core Advantages:
- Ultra-Portable Design: Weighs only 1.6kg with ergonomic handling
- Lab-Level Accuracy: Advanced Si-PIN detector ensures reliable data
- Extended Operation: 8-hour intelligent battery with real-time monitoring
- Enhanced Safety: DoubleBeam™ sample detection + gravity auto-shutdown
- Extreme Environment Ready: Operates from -20°C to 50°C
- Global Compliance: Meets air transport safety regulations
Key Features:
- Elemental range: Potassium (K) to Uranium (U)
- 50kV/200µA adjustable X-ray tube with multi-target options
- 4.3″ industrial resistive touchscreen
- 32GB memory with Bluetooth/USB/Wi-Fi connectivity
- T-shaped radiator for continuous heat dissipation
- One-button testing with instant results
- Applications: jewelry, mining, recycling, archaeology, education

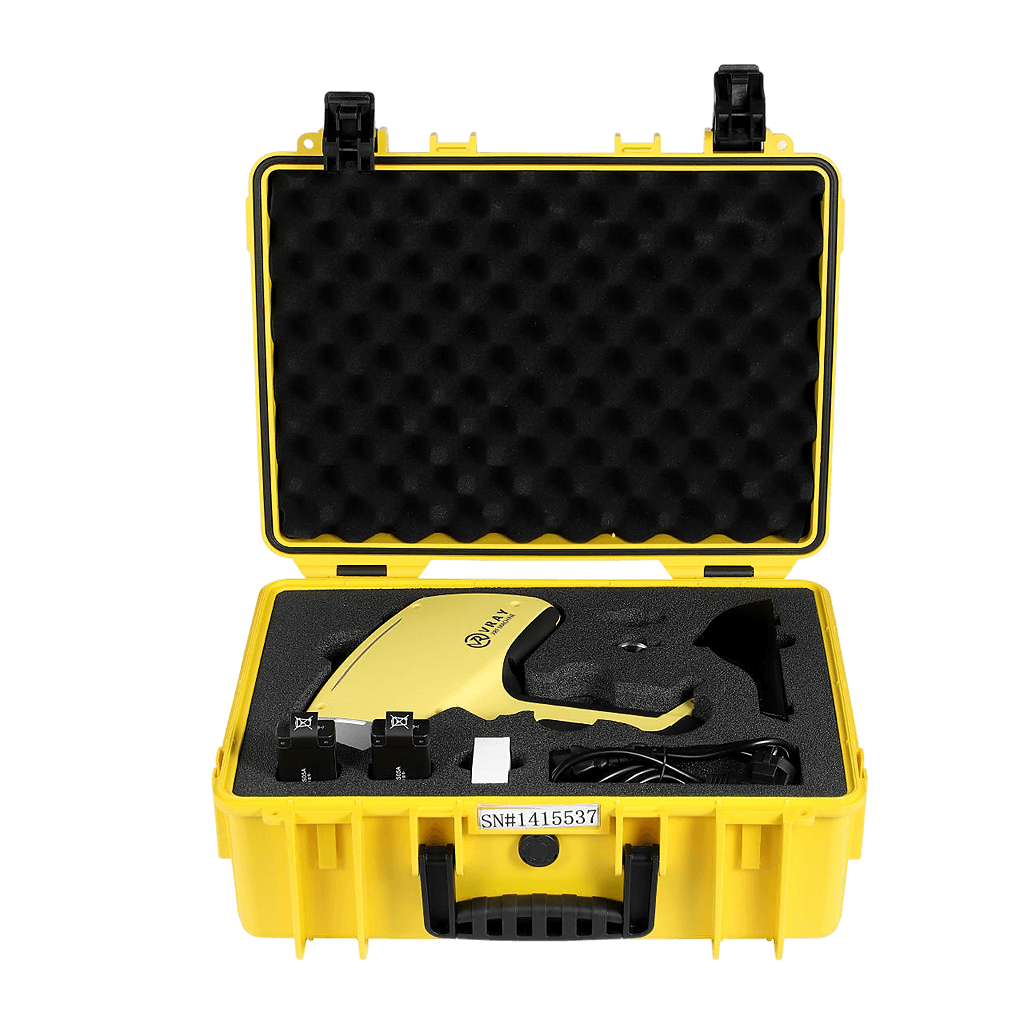

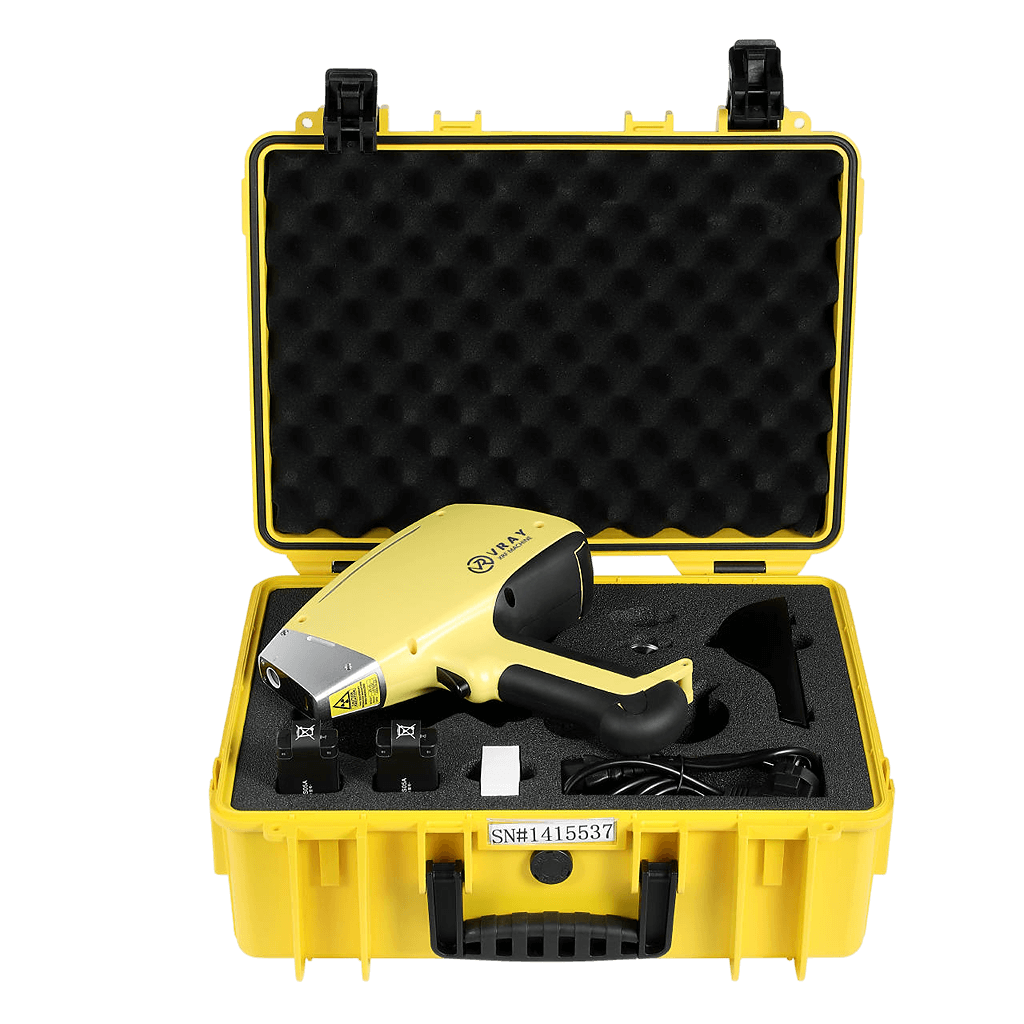

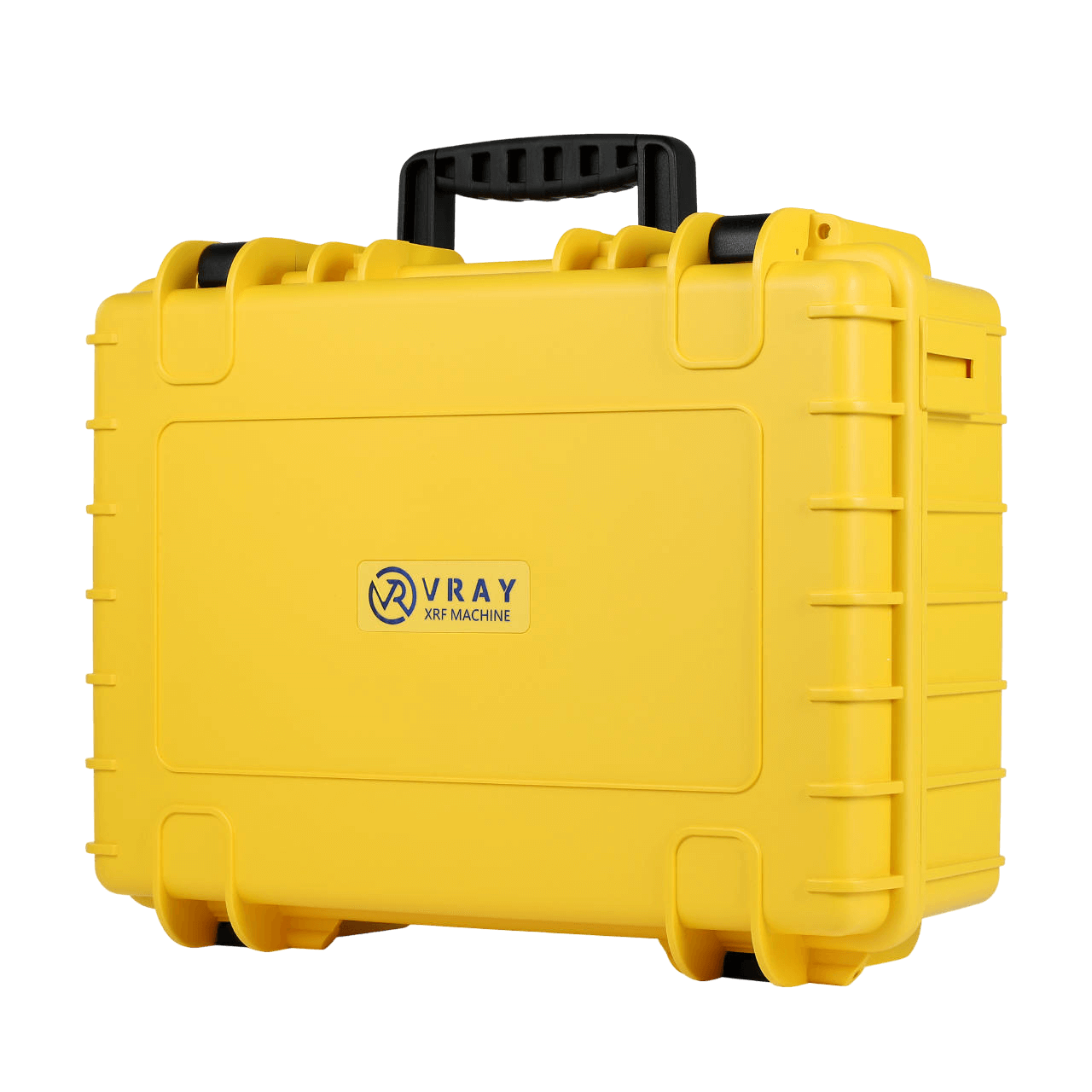

- Water/dust resistant design with protective carrying case
- Supported by global after-sales service network
Application Scenarios of the XRF Spectrometer
Jewelry shop
Quickly verify gold, silver, and platinum for reliable transactions.
Refineries
Ensure metal composition and purity for efficient refining processes.
Laboratories
Conduct accurate XRF analysis without damaging valuable samples.
Pawn shops
Detect metals and coatings quickly to secure trades and build trust.
Educational Institutions – Teaching and Research with XRF Technology
Train students and researchers in precise, non-destructive analysis.
Industrial Applications
Monitor metal quality and plating layers to meet industry standards.Technical Service & Warranty Items
Online Technical Support
Remote Diagnosis Service
1-Year Standard Warranty
Extended Warranty Options
Calibration Service
Software Lifetime Upgrade
Spare Parts Supply
On-Site Training Service
Maintenance Service Package
Fast Response Service
