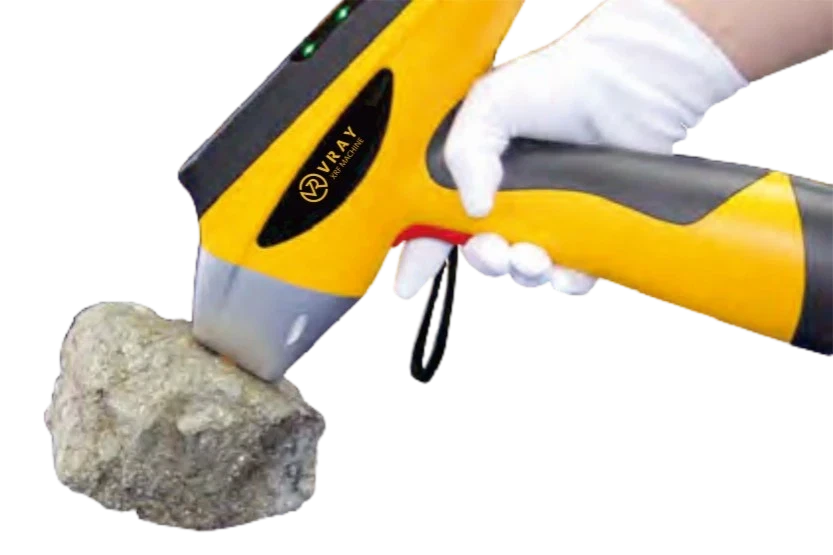

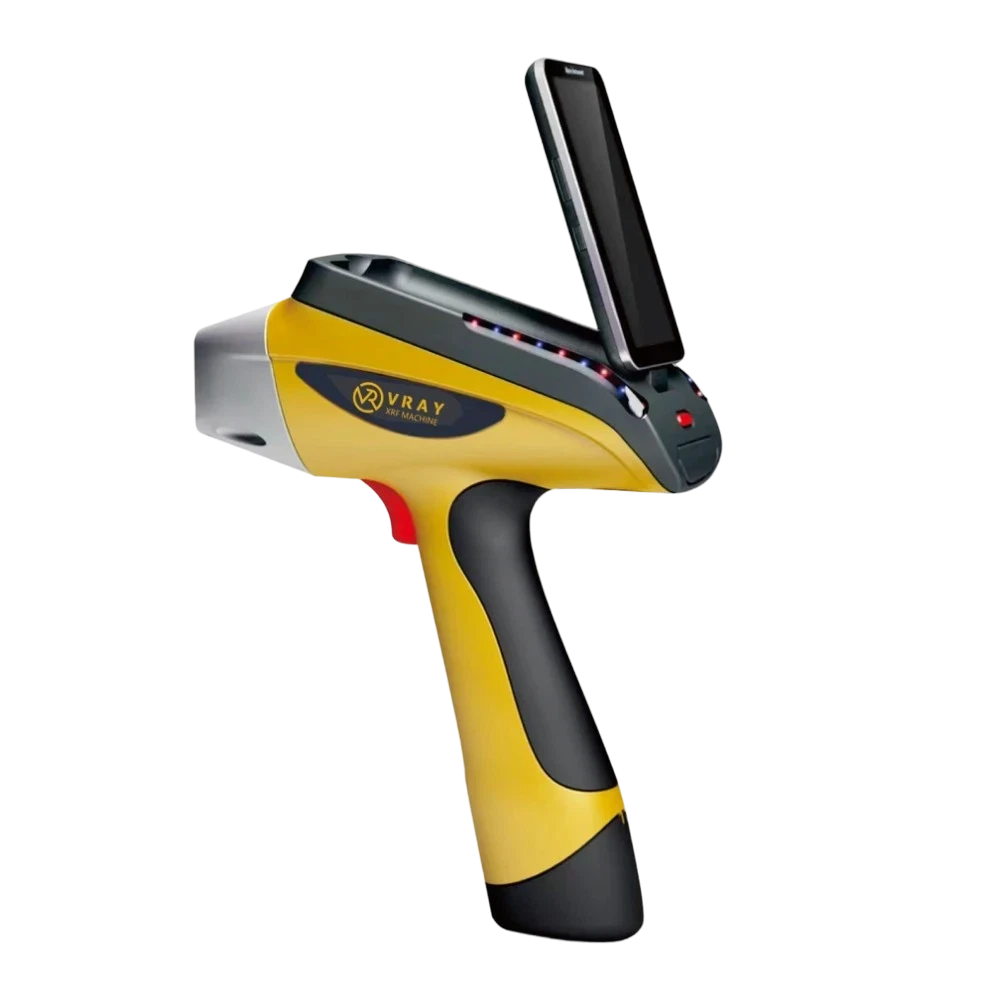

Handheld XRF Analyzer for Alloy, Soil & Ore – VR-S9

The VR-S9 is a lightweight (1.7kg) handheld XRF analyzer designed for rapid, non-destructive analysis of alloys, soil, and ores. With a wide detection range (Mg to U) and results in seconds, it delivers laboratory-grade accuracy in the field for mining, environmental monitoring, and metal identification applications.

SENT INQUIRY

LIVE CHAT

DOWNLOAD

Specifications

Handheld XRF Analyzer

Analyzer Type

SDD or FAST-SDD detector

Detector

1.7 Kg (with battery)

Weight

5″ Transflective LCD Touch Screen

Display

244 x 90 x 330 mm

Product Dimensions

4.0 mm and 2.0 mm (auto-switching)

Collimator

Mg to U

Elemental Range

6 types (auto-switching)

Filters

Solid, Liquid, Powder

Sample Types

Up to 12 hours (9000 mAh Li-ion)

Battery Life

Up to 40 elements

Simultaneous Analysis

GPS, Wi-Fi, Bluetooth

Data Connectivity

ppm to 99.99%

Detection Range

Standard 4GB (expandable to 32GB)

Storage Capacity

1-60 seconds

Analysis Time

-20°C to 50°C

Operating Temperature

50 kV/200 µA Silver target X-ray tube

Excitation Source

<90% RH (Non-condensing)

Operating Humidity

VR-S9 Handheld XRF Analyzer: Precision, Portability, and Versatility for Field Analysis

The VR-S9 represents the pinnacle of handheld X-ray fluorescence (XRF) technology, engineered to deliver rapid, accurate, and non-destructive elemental analysis across a wide spectrum of industries. Weighing just 1.7kg and built for true field portability, this analyzer combines laboratory-grade precision with rugged reliability, making it an indispensable tool for professionals in mining, environmental monitoring, metal manufacturing, and quality control. Its ability to instantly analyze solids, liquids, and powders with minimal preparation ensures efficiency and productivity in even the most demanding environments.

Equipped with a high-performance silver target X-ray tube (50kV/200µA) and an ultra-high-resolution SDD or FAST-SDD detector, the VR-S9 achieves exceptional sensitivity and accuracy across an extensive elemental range from Magnesium (Mg) to Uranium (U). The instrument supports simultaneous analysis of up to 40 elements, with detection limits as low as ppm levels and content ranges up to 99.99%. Advanced features such as automatic collimator and filter switching (6 filter options), digital multi-channel processing, and intelligent curve matching ensure optimized performance for diverse sample types without manual intervention. The 5-inch transflective LCD touchscreen remains clearly visible under direct sunlight, while its intuitive interface enables one-key operation for fast, user-friendly testing.

Designed for all-day field use, the VR-S9 boasts an impressive 12-hour battery life powered by a 9000mAh rechargeable lithium battery, alongside robust connectivity options including GPS, Wi-Fi, and Bluetooth for seamless data transfer and geotagging. With 4GB standard storage (expandable to 32GB), it effortlessly handles large datasets and generates comprehensive reports for compliance and decision-making. Operating reliably in temperatures from -20°C to 50°C and humidity up to 90%, this analyzer is ideal for applications ranging from ore grade control and soil heavy metal detection to alloy verification and precious metal recycling. The VR-S9 sets a new standard for versatility, accuracy, and durability in handheld XRF analysis.

Rapid Testing

Get results within 30 seconds, greatly improving efficiency.

Versatile Applications

Suitable for a wide range of use cases.

High-Precision Analysis

Advanced algorithms and optical systems ensure accuracy and reliability.

Non-Destructive Testing

Non-contact analysis preserves samples intact.

Core Advantages & Key Features of VR-S9

The VR-S9 Handheld XRF Analyzer delivers laboratory-level precision in a rugged, portable design, enabling rapid on-site analysis of alloys, soils, ores, and liquids. Combining advanced detection technology with user-friendly operation, it provides instant, reliable results for diverse industrial and environmental applications.

Core Advantages:

True Field Portability: Weighing only 1.7kg with 12-hour battery life, it is engineered for extended use in remote or challenging environments.
Exceptional Analytical Range: Precisely analyzes elements from Magnesium (Mg) to Uranium (U), with detection capabilities from ppm to 99.99%.
High-Speed Precision: Features FAST-SDD detector and advanced algorithms for rapid, accurate results in 1-60 seconds.
Rugged & Reliable: Operates in extreme conditions (-20°C to 50°C, <90% humidity) with industrial-grade durability.
Enhanced Safety: Comprehensive radiation protection and automatic safety systems ensure complete operational security.

Key Features:

One-Button Operation: Intuitive one-key testing with automatic curve matching requires minimal operator training.
Multi-Sample Versatility: Analyzes solids, liquids, and powders without complex preparation.
Advanced Connectivity: Integrated GPS, Wi-Fi, and Bluetooth for real-time data transfer and geotagging.
Smart Automation: Automatic collimator (4.0mm/2.0mm) and filter (6 types) switching optimizes analysis for different materials.
Comprehensive Application Support: Ideal for mining exploration, soil heavy metal detection, alloy verification, and precious metal analysis.
