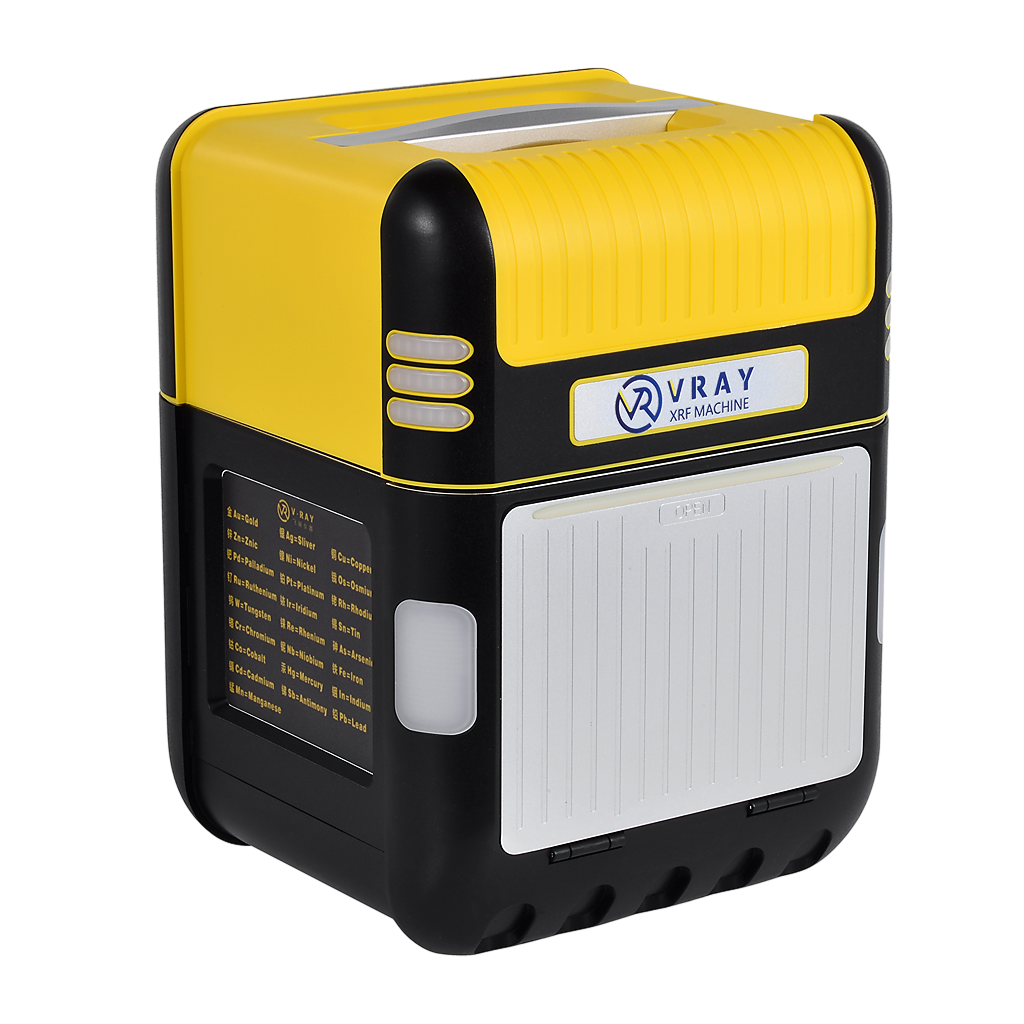

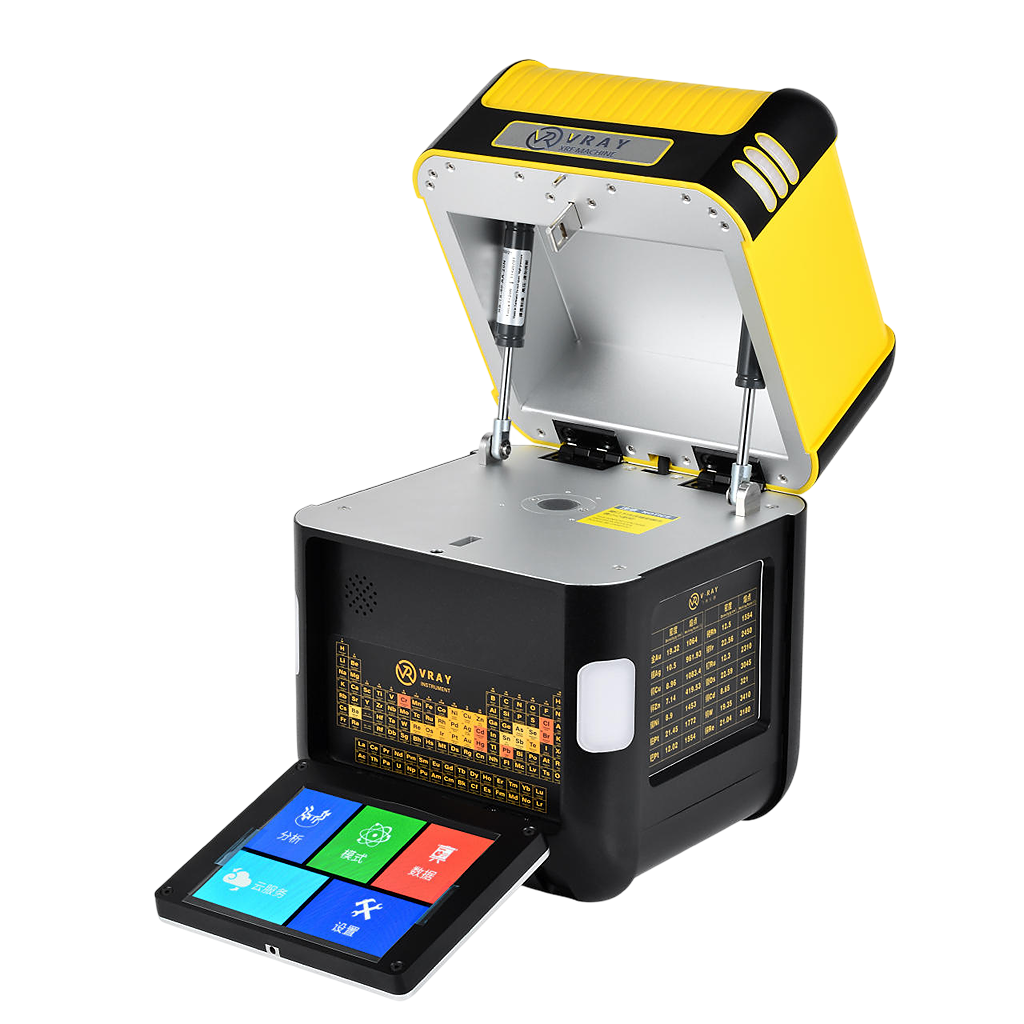

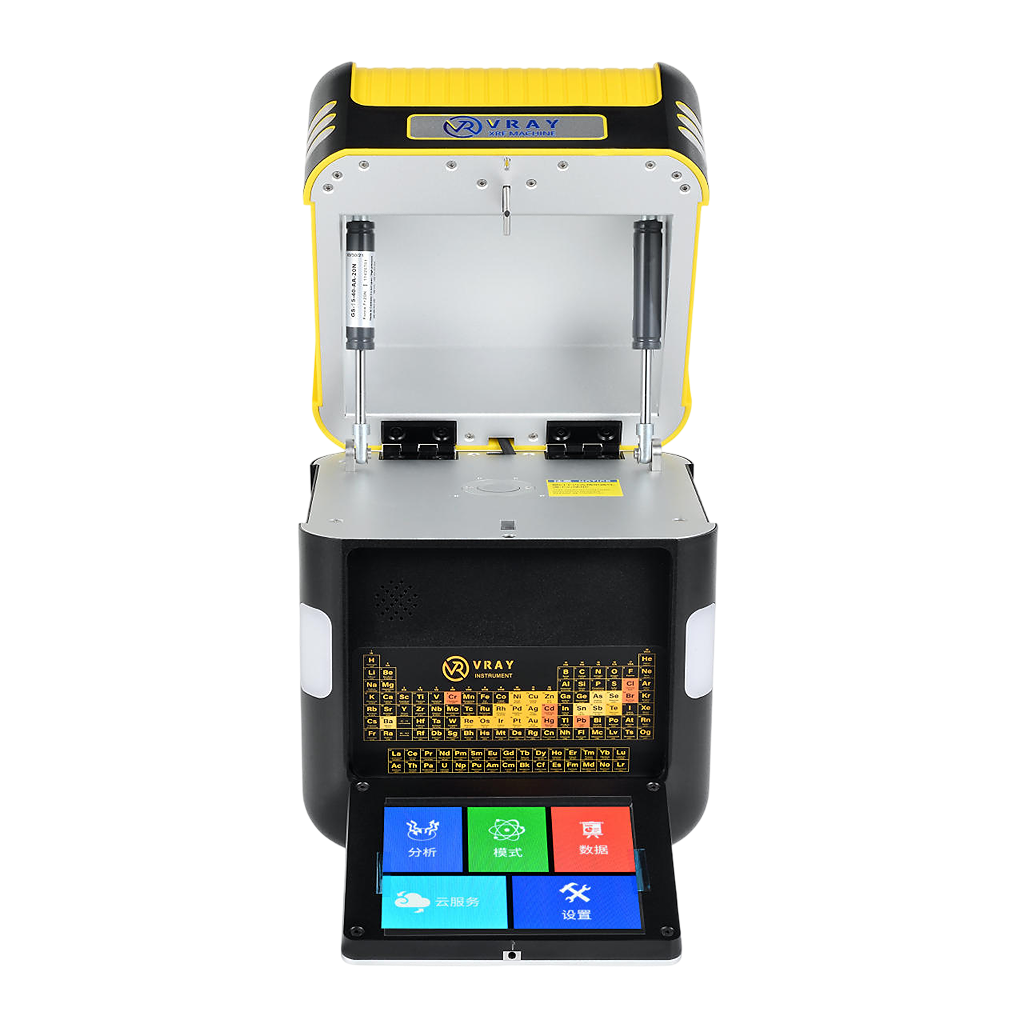

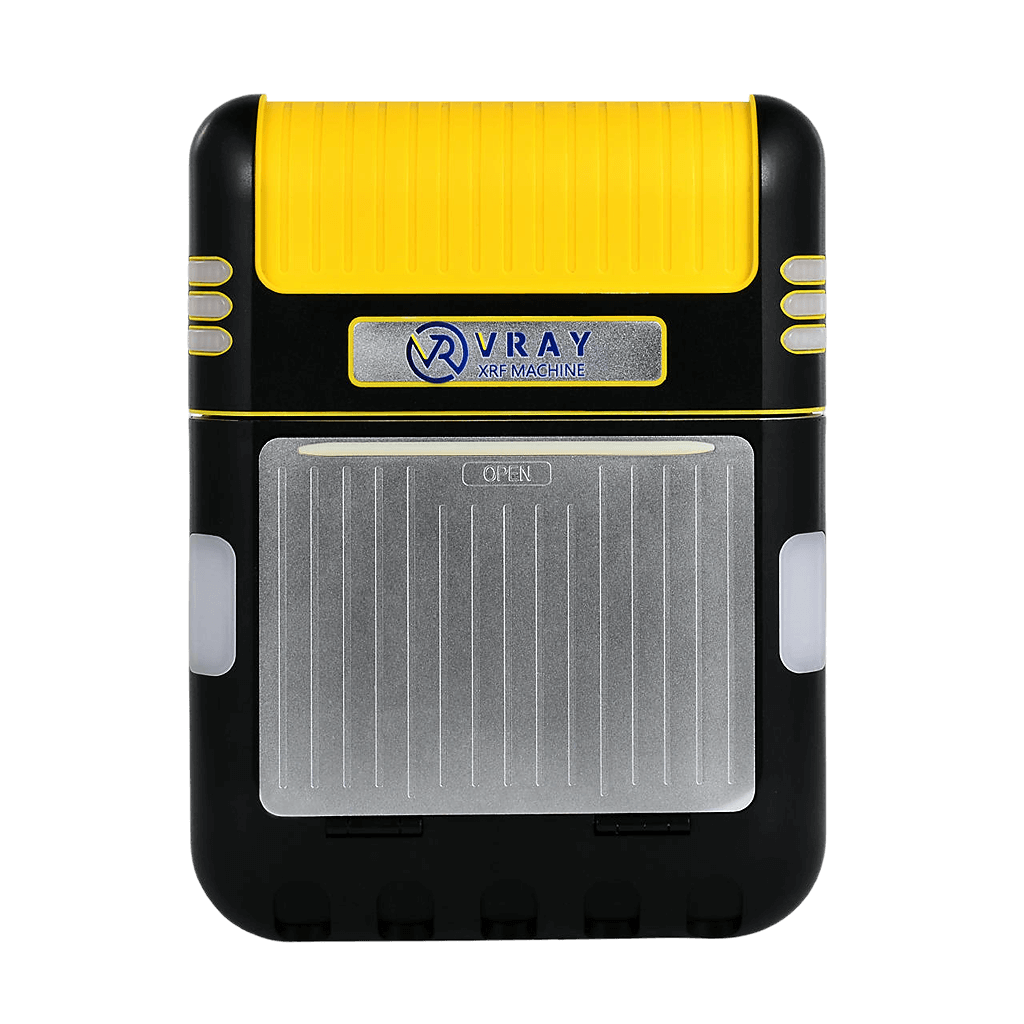

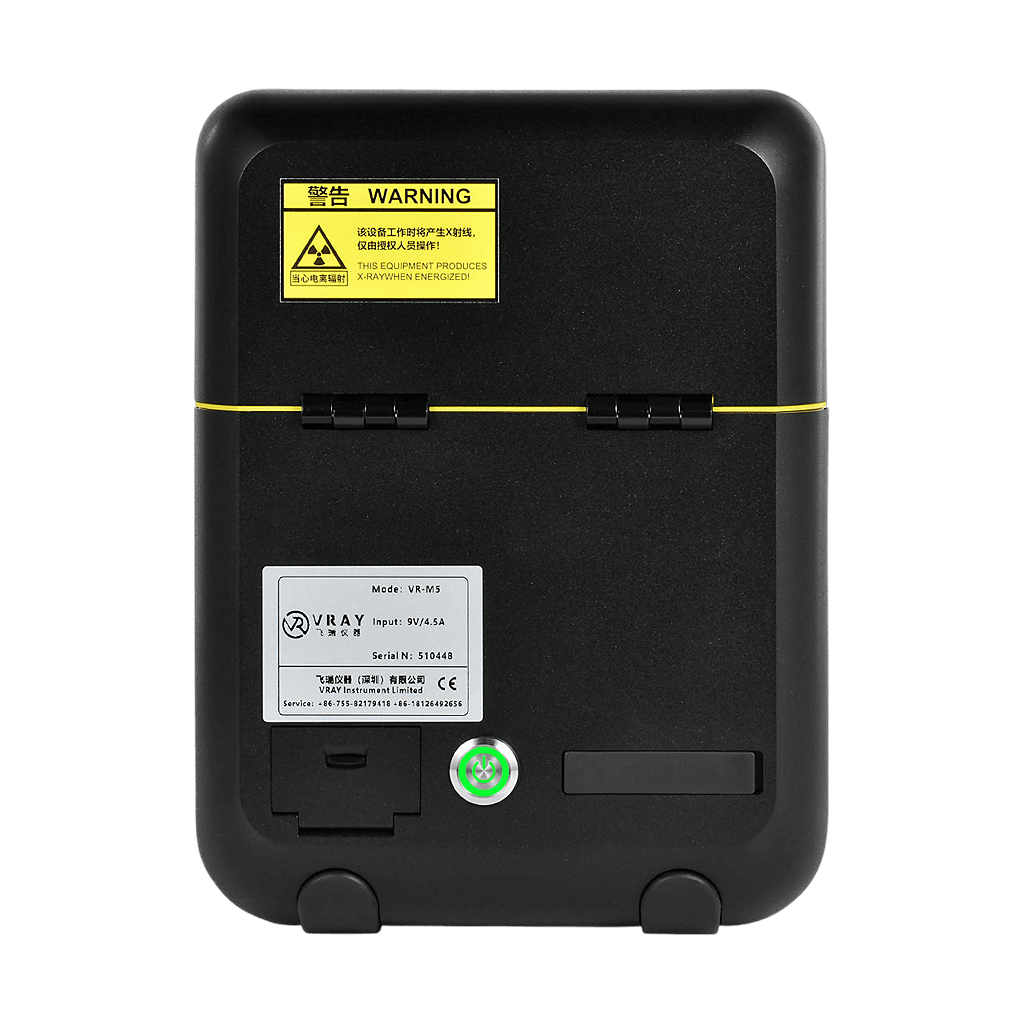

Portable XRF Analyzer VR-M5 – 4KG Gold Analyzer, Easy Carry

The Portable XRF Analyzer VR-M5 is a compact, lightweight (4.1kg) gold and precious metal analyzer, designed for on-the-go accuracy. It offers non-destructive, one-button testing of precious metals, making it ideal for jewelry and recycling applications.

SENT INQUIRY

LIVE CHAT

DOWNLOAD

Specifications

206 × 200 × 278 mm

Product Dimensions

40% – 70% (Non-condensing)

Humidity

170 x130 x 60 mm

Sample chamber size

Si-Pin detector

Detector

Tungsten (Wolfram)

Excitation source Target

Intelligent battery with MSBUS bus

Power supply

Max 4W (50kV/200µA)

power

-20°C to 50°C

Operating Temperature

4.1 kg

Weight

5.7″ retractable color touch screen

Display

Portable XRF Analyzer VR-M5 – Complete Product Description

The VRAY VR-M5 is a highly versatile and user-friendly portable X-ray fluorescence (XRF) analyzer designed for rapid, non-destructive elemental analysis across a wide range of industries. Weighing only 4.1 kg, it combines advanced analytical performance with exceptional portability, making it an ideal tool for on-site testing in fields such as jewelry, recycling, and quality control.

Equipped with a high-performance X-ray tube and ultra-high-resolution Si-PIN detector, the VR-M5 delivers precise measurement of elements from potassium (K) to uranium (U). Its retractable 5.7-inch color touchscreen provides intuitive operation and clear visibility even in challenging lighting conditions. The instrument supports the analysis of solids, liquids, and powders, offering flexibility for various sample types without the need for complex preparation.

Key features include intelligent battery management for up to 8 hours of continuous operation, built-in radiation protection with safety interlock, and a HD camera for sample documentation and positioning. With data connectivity via USB and Bluetooth, and 32GB of internal storage, the VR-M5 ensures seamless data transfer and reporting.

VR-M5 provides laboratory-grade accuracy in a compact, rugged, and easy-to-carry design. It is supported by VRAY’s global after-sales service, making it a reliable choice for professionals seeking efficiency and precision in elemental analysis.

Rapid Testing

Get results within 30 seconds, greatly improving efficiency.

Versatile Applications

Suitable for a wide range of use cases.

High-Precision Analysis

Advanced algorithms and optical systems ensure accuracy and reliability.

Non-Destructive Testing

Non-contact analysis preserves samples intact.

Portable XRF Analyzer VR-M5 Product Details and Key Advantages

All-in-One Design: Combines the analyzer, computer, and screen into a single, compact unit, saving space and enhancing precious metal analysisFast, precise and non-destructive precious metals testingTesting elements: K (19) – U (92)

Core Advantages of VR-M5:

Ultra-Portable: Weighs only 4.1kg with a compact form factor, ideal for on-site testing.
All-Sample Compatibility: Analyzes solids, liquids, and powders without complex preparation.
Long Battery Life: Up to 8 hours of continuous operation with intelligent power management.
Lab-Quality Results: High-resolution Si-PIN detector ensures accurate element detection from K to U.
Enhanced Safety: Built-in radiation protection, auto-cutoff, and safety interlock system

Main Features of VR-M5:

5.7″ retractable color touchscreen for easy operation in various lighting conditions.
Built-in camera for precise sample positioning and documentation.
USB and Bluetooth connectivity for seamless data transfer.
32GB internal memory for storing results and reports.
Supports a wide range of applications: jewelry, recycling, education, and quality control
